HYXi home battery 10 kWh storage capacity with full backup function

Bennebroek, Noord-Holland

1/9

Interested in a similar project?

Contact us for more information about how we can help you with a similar installation.

Request a quote

Project Description

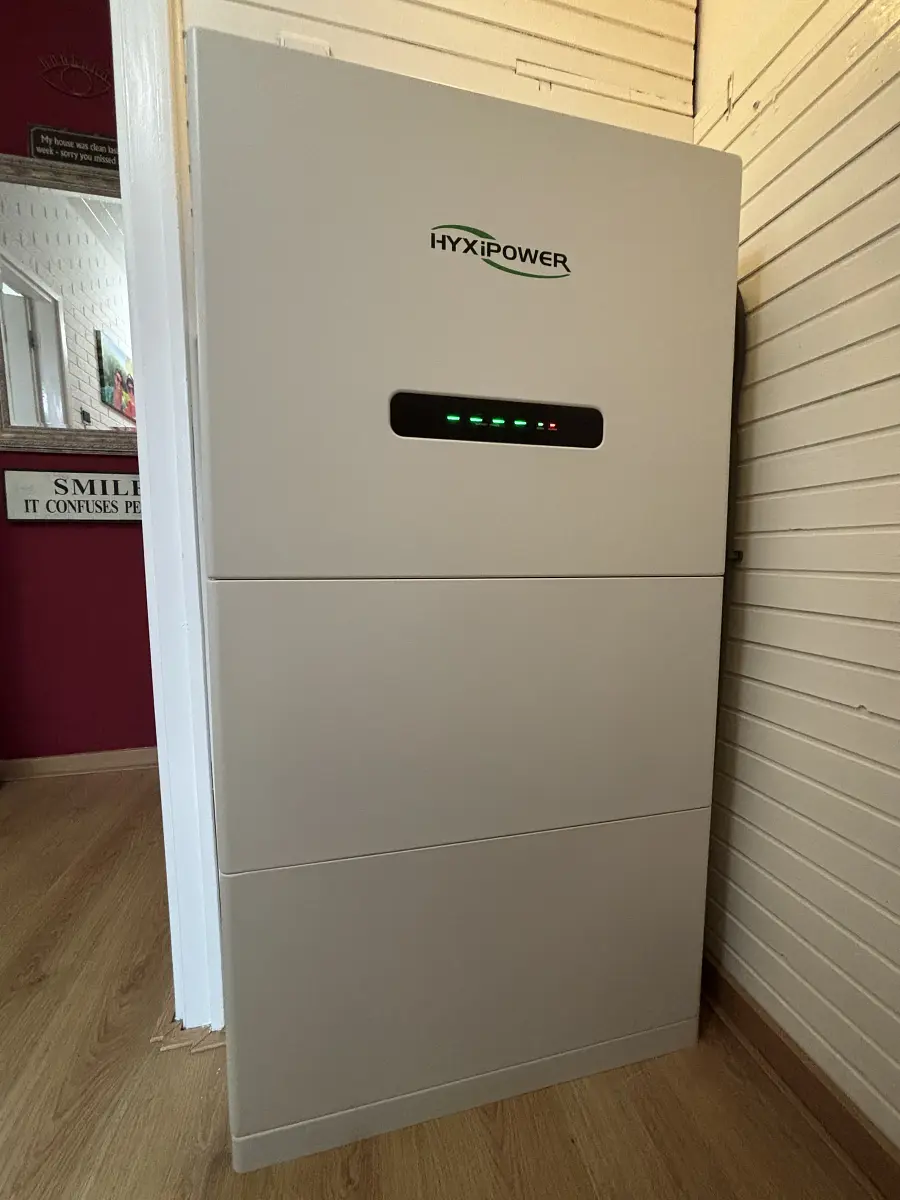

In this project, the client deliberately chose to be more independent from the grid. There are 7 solar panels and a HYXi home battery was installed with 10 kWh storage and full back up, so that the house can continue to run as normal in the event of a power failure.


The setup is immediately prepared for expansion. This battery can be easily scaled up later to 15 or even 20 kWh of storage capacity, without having to rebuild the entire system.


A nice advantage of HYXi is that the inverter power grows along with the battery capacity. At 10 kWh, the system is 6 kW. At 15 kWh, it automatically grows to 9 kW. At 20 kWh to 12 kW. This keeps the charge and discharge rates proportionally strong, which is useful for smart charging, fast discharge and trading at times of low or high energy prices.


For the back up strategy, the customer uses a simple setting in the app. In winter, 50 percent spare capacity remains available by default because there is less sun. In summer, this can go to 0 percent because the battery is automatically refilled with solar energy almost daily anyway. Thus, this family is practically always prepared for a power outage.

The customer's experience

"Outstanding service from start to finish, the installation went extremely smoothly. The installing engineer was incredibly efficient and, honestly, impressively tidy in his working manner. I couldn’t have asked for a better engineer. My house was left clean and tidy upon completion, which I really appreciated.
The entire experience was pleasant and stress‑free. Throughout the installation, the engineer explained what he was doing and why, multiple times, so I fully understood the process. That level of communication made a big difference to me.
I contacted several companies while looking for a battery solution—some didn’t respond at all, and others proposed solutions that didn’t meet my requirements and involved compromises. SunCharged did the opposite: they matched my requirements exactly to the right solution and also made me aware of both cheaper and more expensive alternatives, allowing me to make a fully informed decision."

Solar Panel Installation

7 existing solar panels

Battery System

HYXi 10 kWh All in One
